System Speedypick II

Our experience for your success

Speedypick II was designed by professionals for practical use. As one of the leading electronics mail order companies in Europe, we know exactly what is important in mail order logistics: speed, reliability and flexibility. Speedypick II was developed by us precisely for these requirements. We experience that the system proves itself excellently every day in our company's shipping process. With more than 20 million articles picked, Speedypick II has been tried and tested in practice and contributes significantly to the success of our group of companies.

Speedypick II convinces with its high operational reliability, easy handling and low manpower requirements. Its modular design makes it easy to use in a wide variety of storage areas and to integrate into existing storage systems.

All information in detail

No matter which variant you choose, Speedypick II modules are quick and easy to assemble.

Our customers confirm it again and again: an important criterion for the selection of a new order-picking system is ease of assembly. Speedypick II offers the perfect solution here: all modules can be assembled easily, quickly and cost-effectively. Special knowledge on the mechanical side is not required. The different display modules are installed in an extremely resilient aluminium extrusion. The 40 mm wide anodised profiles do not restrict accessibility to the storage location.

With Speedypick II you secure decisive competitive advantages for the success of your company!

Your advantages at a glance

  • low investment outlay with rapid amortisation of costs
  • rationalisation and optimisation of your processes
  • increase in order picking quality and reduction in error rates
  • reduction of logistics costs due to lower personnel requirements and more flexible personnel deployment
  • higher transparency of warehouse and order stock
  • high and long-term operational reliability of the system
  • short reaction time with flexible adjustment to customer requirements

Convincing technical features

  • high operational reliability through intelligent software
  • flexible use and cost-effective expansion
  • user-friendly operation
  • self-diagnosis capability for error prevention and detection
  • cost-effective and highly flexible remote maintenance (possible at any time, from any location)
  • easy to install, therefore simple and quick to install
  • robust due to stable aluminium profile
  • insensitive to dirt even in continuous operation
  • excellent readability of the display modules
  • simple and safe operator guidance

Paperless order picking with a system
Speedypick II works according to the "pick-by-light" principle and thus operates completely without receipts. The employees who assemble (pick) the goods for an order are guided through the picking zone via an optical signal. The simple handling of Speedypick II makes the picking process so safe that one can speak of a "zero error concept". Customer orders are processed reliably and quickly - that is the best guarantee for satisfied customers.

Speedypick II - the convincing solution for paperless picking
Speedypick II is characterised by its modular design and maximum flexibility. The expandability of the system is practically unlimited. Each Speedygate can manage 64 modules (displays) on one line output. Each Speedygate has 16 line outputs. This means that 1024 (64 x 16) modules can be controlled. An RS 485 bus is used in the line, the total length of which should not exceed approx. 100 metres. Data exchange with the higher-level merchandise management system takes place via an Ethernet 10/100 Base TX connection of the Speedygate. The number of these per system is not limited.

Versatile application possibilities due to modular design
Speedypick II is ideally suited for use in almost all areas of the mail order business, e.g. for pharmaceutical, electronic, press or clothing articles. Speedypick II is also ideal for use in wholesale and retail in the supply of goods to branches from a central warehouse. Error-free order picking is essential in production or assembly operations - here, too, Speedypick II is the optimal solution. The modular design allows the system to be built up and expanded step by step and flexibly adapted to the respective operational requirements. This is an essential criterion, especially for logistics service providers who often have to adjust their processes to the most varied and changing product ranges of their customers.

moremore

Your advantages at a glance

With Speedypick II you secure decisive competitive advantages for the success of your company!

  • low investment costs with rapid amortisation of costs
  • rationalisation and optimisation of your processes
  • increase in picking quality and reduction in error rates
  • reduction of logistics costs through lower personnel requirements and more flexible personnel deployment
  • higher transparency and with regard to stock and orders on hand
  • high and long-term operational reliability of the system
  • short reaction time with flexible adjustment to customer requirements

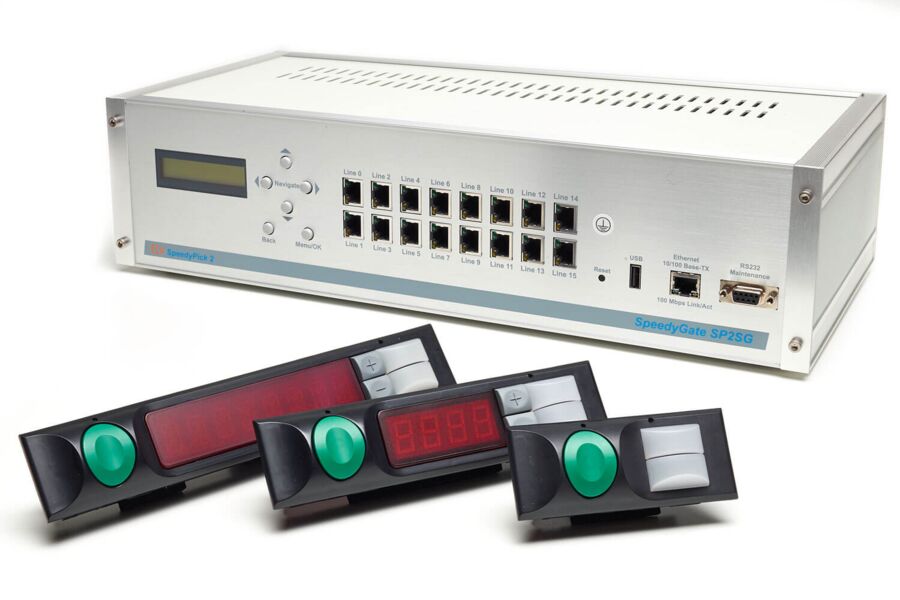

Components required

  • 1x Speedygate SP2SG
  • display modules 0-, 4- or 8-digit SP2SG
  • user manual
  • aluminium profile
  • essential accessories:
    - flat ribbon cable
    - Connector
    - profile cover
    - div. small parts

Speedygate technical data

  • 19" housing for rack mounting
  • Ethernet 10/100 MBit (TCP/IP)
  • Linux operating system
  • remote maintenance with software update
  • 16 strings, up to 64 modules per string
  • power management for load-dependent brightness control of the display modules

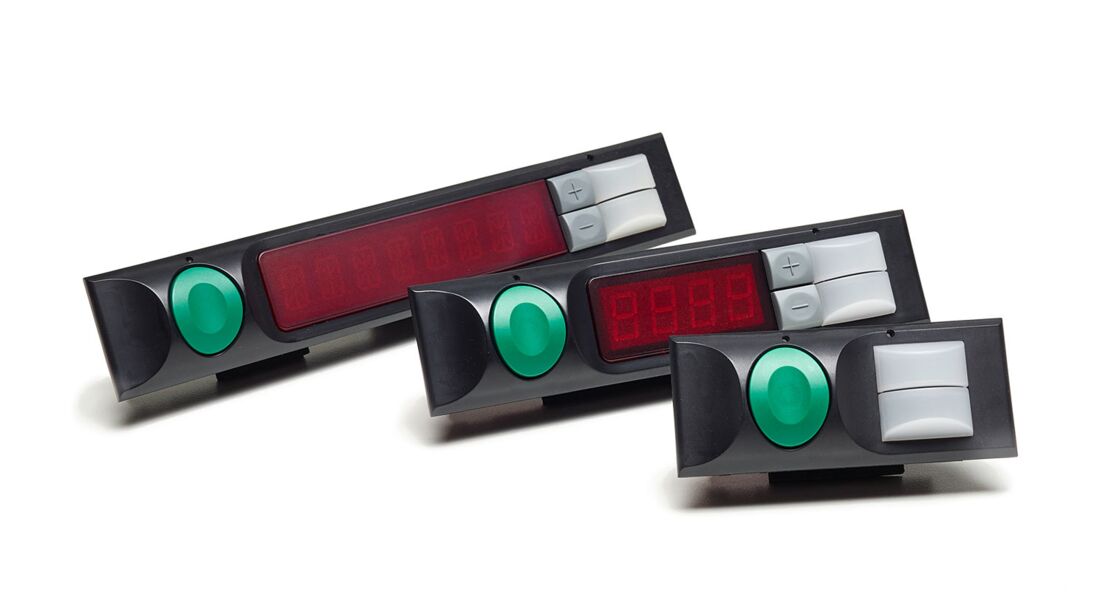

Display modules technical data

  • connection to Speedygate via RS-485 bus
  • own intelligence (flash controller)
  • firmware update in installed state
  • self-diagnosis capabilities during operation
  • super-bright displays, brightness adjustable via software
  • 2 RGB LEDs for the MIDI and 4-digit display
  • red and green LEDs for the 8-digit displays
  • low current consumption due to switching regulator

SYSTEM COMPONENTS AND ACCESSORIES

  • 8-way LineConnector - Article 104867

    Distributor module for connecting several Speedypick profiles to a Speedygate line.

System components table

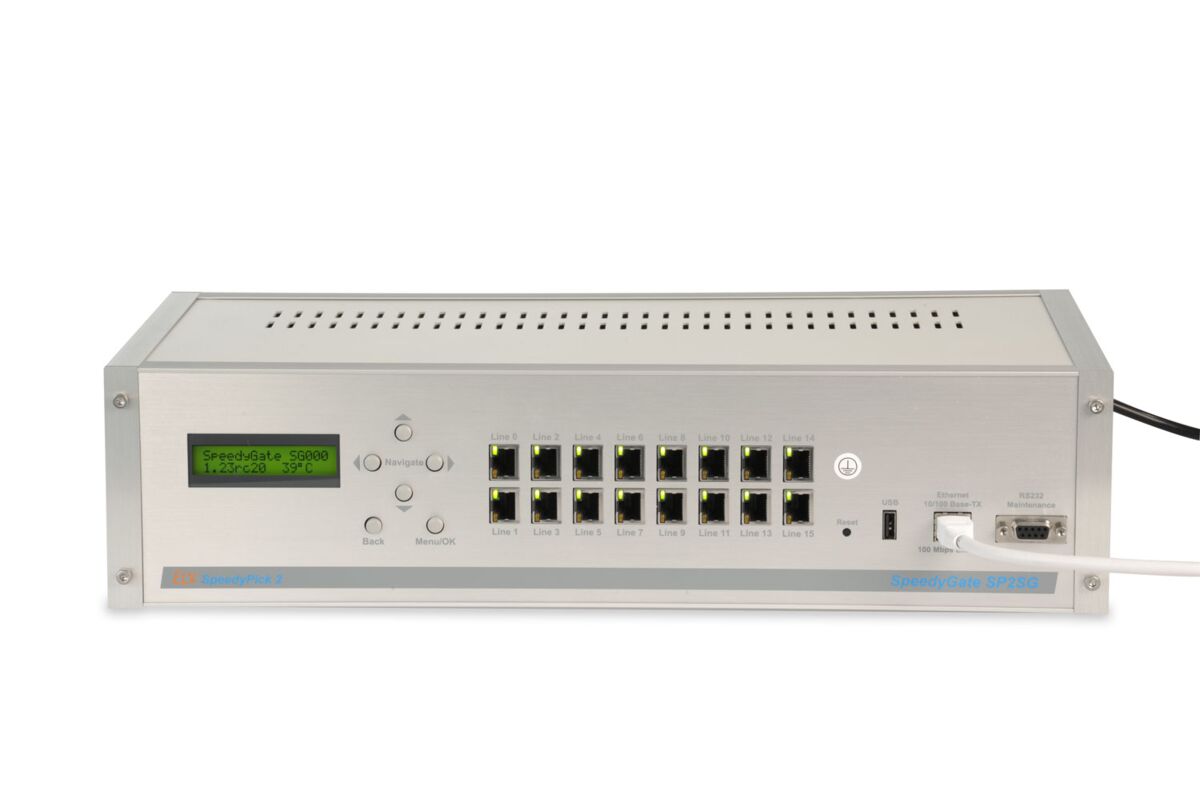

SPEEDYGATE SP2SG

Voltage 230 V
Max. power consumption 600 watt
Outputs 16 channels for up to 64 modules per channel
Interfaces Ethernet 10/100 Base TX
External dimensions L x W x H 450 x 220 x 120 mm
Weight 9,95 kg
Operating temperature 0°C to +50° C

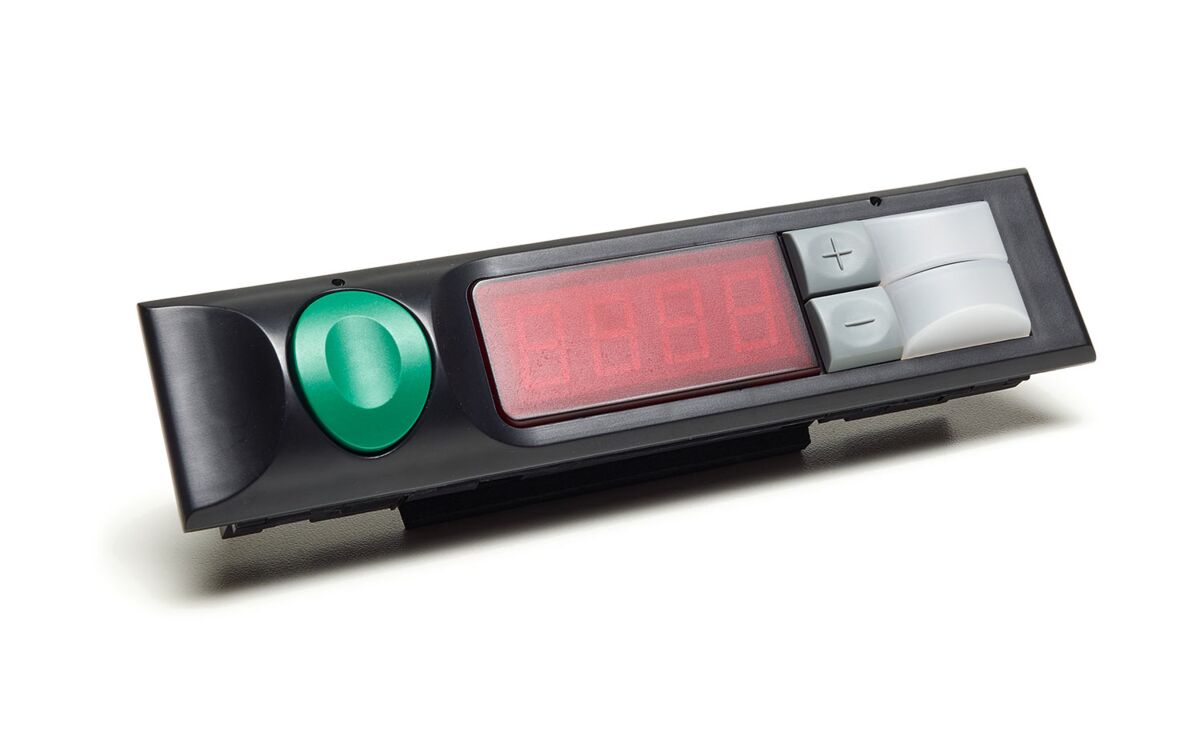

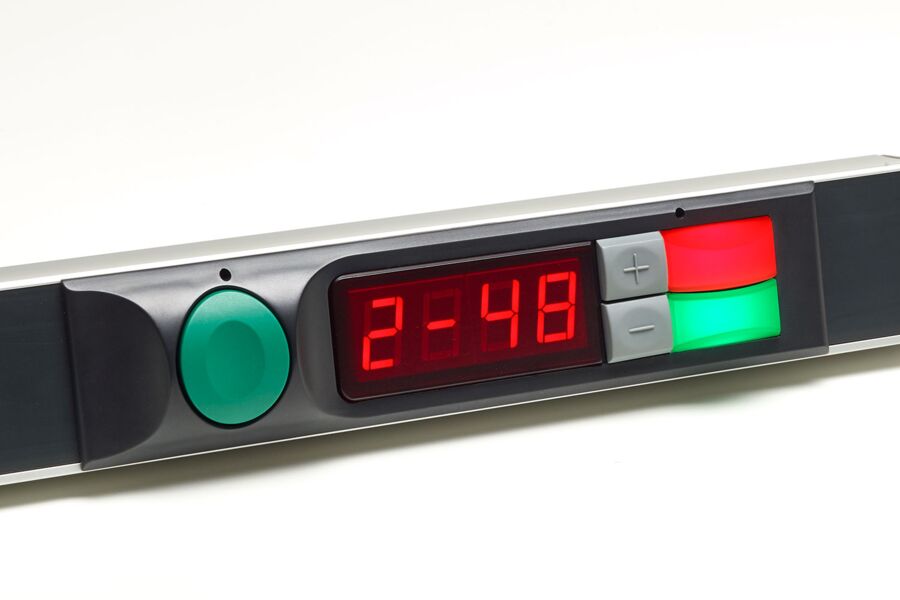

4-digit numeric display SP2DN4

Output 4-digit numeric, 4x7 segments, red LED displays, 2 signal lights (RGB)
Input 1 large acknowledgement key (Cherry), 2 correction keys + / - (Omron)
Connection Flat cable via post connector
Weight 83 g
Housing Plastic PBTP (Crastin S650FR DuPont)
Colour anthracite grey (RAL 7021)
Operating temperature -25°C tos +50° C

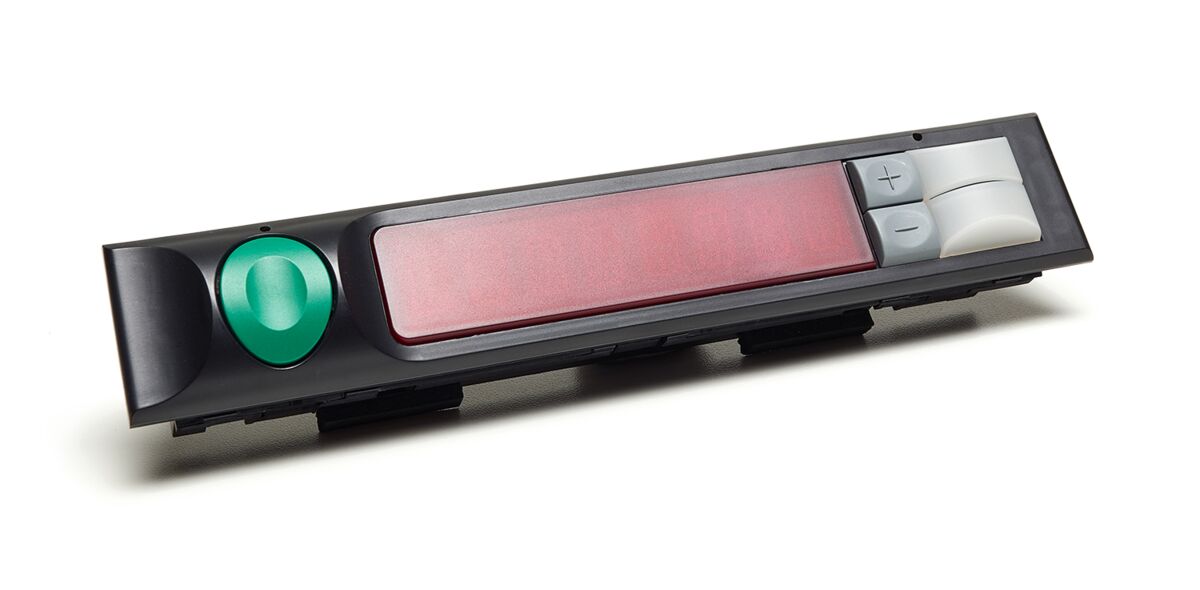

8-digit numeric display SP2DN8

Output 8-digit alphanumeric, 8x14 segments, red LED displays, 2 signal lamps red+green)
Input 1 large acknowledgement key (Cherry), 2 correction keys + / - (Omron)
Connection Flat cable via post connector
Weight 116 g
Housing Plastic PBTP (Crastin S650FR DuPont)
Colour anthracite grey (RAL 7021)
Operating temperature -25°C to +50° C

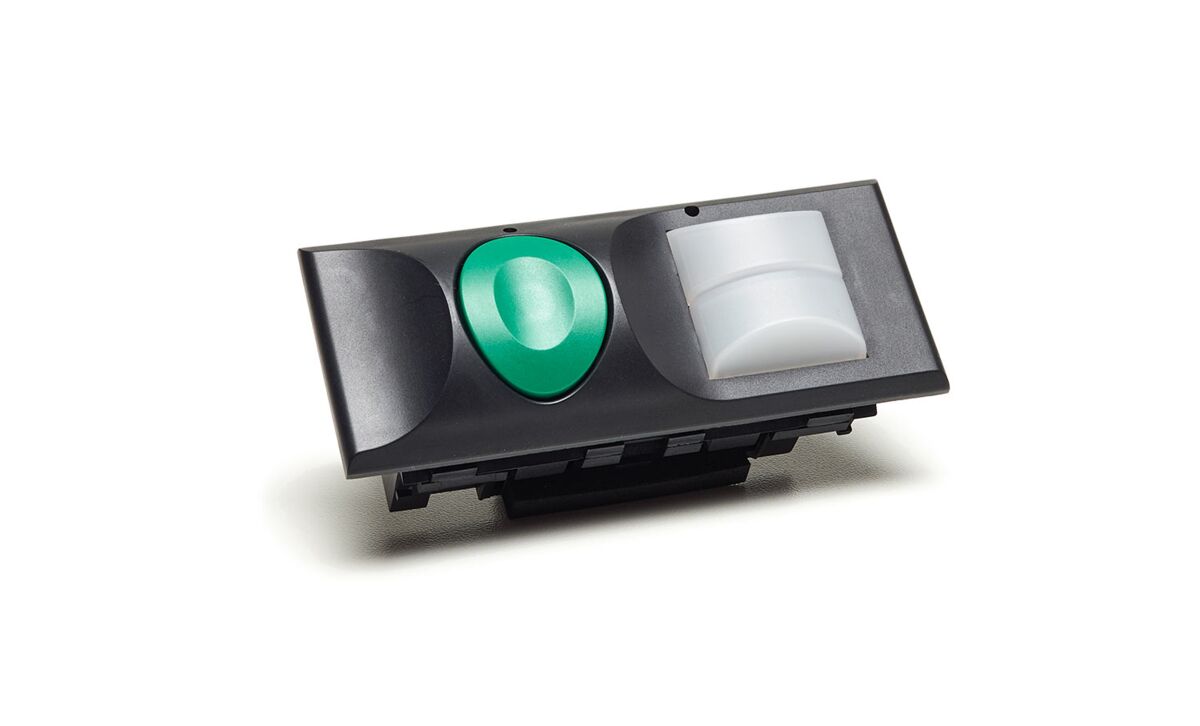

Midi module SP2D0

Output 2 signal lamps red + green each consisting of 4 ultra-bright SMD LEDs
Input 1 large acknowledgement button (Cherry)
Connection Flat cable via post connector
Weight 42 g
Housing Plastic PBTP (Crastin S650FR DuPont)
Colour anthracite grey (RAL 7021)
Operating temperature -25°C to +50° C
